Session 1: Basic Unix¶
This session will give you all the basics that you need to smoothly move around when using a Unix system (in the text mode!).
Basic orientation¶
Note
Copying and pasting in the Windows terminal (Git for Windows) is different
than in other programs - especially because ctrl+c
means to kill the current
program. To copy text to clipboard just select it with your left mouse button.
To paste from clipboard either click midlle mouse button, or press shift+insert
.
Command line¶
How does it work with commands in command line? Typical command is composed of command name, flag, flag value, path to input file and path to output file.
command -flag(value) input > output
# Specific example
head -n10 file.txt > out.txt
How do I know which flags to use for individual commands? There is several ways. You can
you command documentation using man
, or most of commands have help option -h
or --help
. Below is way to call manual and help.
# using manual
man head
# brief help summary
head --help
Check your keyboard¶
Before we do any serious typing, make sure you know where are the important keys. I’d suggest using English keyboard, if you don’t want to constantly press right alt and five random letters before you find the one you need. You will definitely need those keys:
[] - square brackets
{} - curly brackets (mustache)
<> - angle brackets (less than, greater than)
() - parentheses
~ - tilde
/ - slash
\ - backslash
| - pipe
^ - caret
$ - dollar sign
: - colon
; - semicolon
. - dot
, - comma
# - hash, pound
_ - underscore
- - dash
* - asterisk
! - exclamation mark
? - question mark
& - ampersand
@ - at sign
' - single quote
" - double quote
` - back tick
Be safe when the network fails¶
When you are disconnected from the machine due to any technical problems,
all your running programs are killed. To prevent this, we suggest to use
the screen
tool for all your work:
screen
To safely disconnect from a running screen press ctrl+a d
(d for detach).
To attach again type:
screen -r
You can have simultaneously multiple sessions. In that case you have to select
to which session to reattach. -ls
command can be used to list all
existing sessions and then re-attach to a specific session using -r
and specifying the name of the session:
screen -ls
screen -r XXXX.NNNNNN.XXXX
To kill screen
session we can use:
screen –X -S XXXX.NNNNNN.XXXX quit
Note
Keyboard shortcuts notation: ctrl+a d
means press ctrl
key and a
key
simultaneously and d
key after you release both of the previous keys.

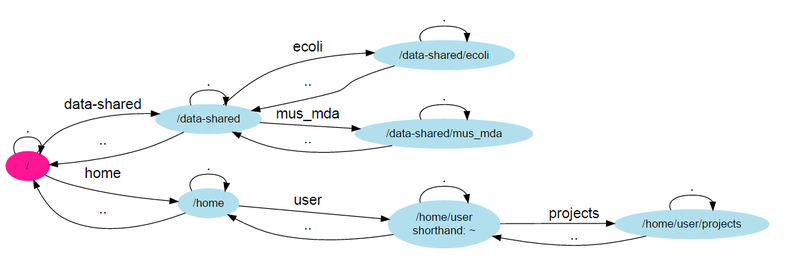

Directory structure¶
Unlike ‘drives’ in Windows, Unix has a single directory tree that starts in
/
(called root directory). Everything can be reached from the root
directory. The next important directory is ~
(called user’s home directory).
It is a shortcut for /home/user
here, /home/..your login name..
in
general.
Your bash session has a working directory that can be changed with cd
(change directory) and printed with pwd
(print working directory). All
filenames and paths you type refer to your working directory (relative paths),
unless you start them with /
(absolute paths).
Try the following commands in the order they are provided, and figure out what they do. Then use your knowledge to explore the directory structure of the virtual machine.
Figure out what these commands do:
pwd
ls
ls /
ls ..
ls ~
cd
cd /
cd ..
cd ~
A neat trick to go back where you’ve been before the last cd
command:
cd -
More in Moving around & manipulation with files and directories.
Moving or copying files and directories¶
touch file.txt # make an empty file.txt
mkdir dir # make a directory
mkdir -p some/sub/directories # make nested directories
rm # remove a file
rm -r # remove a directory
mv # move a file/directory
cp # copy a file/directory
Viewing plain text file content¶
less -SN
tail -n8
head -n8
cat
nano
Work with compressed files¶
# gzipped files (take care, this removes the input file)
gunzip file.txt.gz
# Open gzipped files in pipeline (zcat does not remove the file)
zcat file.txt.gz | less
# Compressed tarball archives (does not remove the archive)
tar -xzvf fastq.tar.gz
Exercise: Prepare fastq files in your working directory
# Go to home directory
cd
# Make a new directory 'fastq'
mkdir projects/fastq && cd projects/fastq
# Copy a fastq archive to the new directory
cp /data-shared/fastq/fastq.tar.gz .
tar -zxvf fastq.tar.gz
ls -sh
Pipes¶
Using the |
(pipe) character you instruct the shell to take the output of
the first command and use it as an input for the second command.
The complement to head
is tail
. It displays last lines of the input. It
can be readily combined with head
to show the second sequence in the file.
cd ~/projects/fastq
head -8 HRTMUOC01.RL12.00.fastq | tail -4 | less
# Neater way to write pipelines
< HRTMUOC01.RL12.00.fastq head -8 | tail -4 | less -S
Globbing¶
Imagine you’ve got 40 FASTQ files. You don’t want to copy and paste all the
names! There is a feature that comes to rescue. It’s called globbing. It
allows you to specify more filenames at once by defining some common pattern.
All your read files have .fastq
extension. *.fastq
means a file named
by any number of characters followed by ‘.fastq’.
cd ~/projects/fastq
ls *.fastq
ls HRTMUOC01.RL12.0?.fastq
ls HRTMUOC01.RL12.0[1-9].fastq
Exercise: How many reads are there?:
We found out that FASTQ files have a particular structure (four lines per read).
To find the total number of reads in our data, we will use another tool, wc
(stands for word count, not for a toilet at the end of the pipeline;). wc
counts words, lines and characters.
Our data is in several separate files. To merge them on the fly we’ll use
another tool, cat
(for conCATenate). cat
takes a list of file names and
outputs a continuous stream of the data that was in the files (there is no way
to tell where one file ends from the stream).
# now double click on each file name in the listing, # and click right mouse button to paste (insert space in between)
cat *.fastq | wc -l
The number that appeared is four times the number of sequences (each sequence takes four lines). And there is even a built-in calculator in bash:
echo $(( XXXX / 4 ))
expr XXXX / 4
Variables¶
CPU=4
echo $CPU
FILE=~/projects/fastq/HRTMUOC01.RL12.00.fastq
echo $FILE
Lists & Loops¶
PARAM=$({0..9})
for v in $PARAM
do
echo $v
done
# One line syntax
for v in $PARAM; do echo $v; done
Installing software¶
The easiest way to install software is via a package manager (eg. apt-get
for all Debian variants). When the required software is not in the repositories,
or one needs the latest version, it’s necessary to take the more difficult path.
The canonical Unix way is:
wget -O - ..url.. | tar xvz # download and unpack the 'tarball' from internet
git clone ..url.. # clone source code from git repository
cd ..unpacked directory.. # set working directory to the project directory
./configure # check your system and choose the way to build it
make # convert source code to machine code (compile it)
sudo make install # install for everyone on this machine
Note
Normal users cannot change (and break) the (Unix) system. There is one special
user in each system called root
, who has the rights to make system wide changes.
You can either directly log in as root, or use sudo
(super user do) to execute
one command as root
.
htop¶
Note
This year the machine is shared among all course participants, so we can’t give super user access to everyone to be sure that no one can accidentally damage the machine.
Installing software from common repository:
sudo apt-get install htop
Bedtools¶
Install software which is not in the common repository. You just need to find a source code and compile it:
wget https://github.com/arq5x/bedtools2/releases/download/v2.25.0/bedtools-2.25.0.tar.gz
tar -zxvf bedtools-2.25.0.tar.gz
cd bedtools2
make
Another common place where you find a lot of software is GitHub. We’ll install
bedtools
from a GitHub repository:
cd ~/sw
# get the latest bedtools
git clone https://github.com/arq5x/bedtools2
This creates a clone of the online repository in bedtools2
directory.
cd bedtools2
make
Exercise¶
Note
- What is the output of this command
cd ~/ && ls | wc -l
?
- The total count of files in subdirectories in home directory
- The count of lines in files in home directory
- The count of files/directories in home directory
- The count of files/directories in current directory
- How many directories this command
mkdir {1999..2001}-{1st,2nd,3rd,4th}-{1..5}
makes (do not use calculator!)?
- 56
- 60
- 64
- 72
- When files created using this command
touch file0{1..9}.txt file{10..30}.txt
, how many files matched byls file?.txt
andls file*0.txt
- 30 and 0
- 0 and 30
- 30 and 4
- 0 and 3
- Which file would match this pattern
ls *0?0.*
?
- file36500.tab
- file456030
- 5460230.txt
- 456000.tab
- Where do we get with this command
cd ~/ && cd ../..
?
- two levels below home directory
- one level above home directory
- to root directory
- two levels above root directory
- What number does this command
< file.txt head -10 | tail -n+9 | wc -l
print? (Assume the file.txt contains a lot of lines)
- 0
- 1
- 2
- 3
